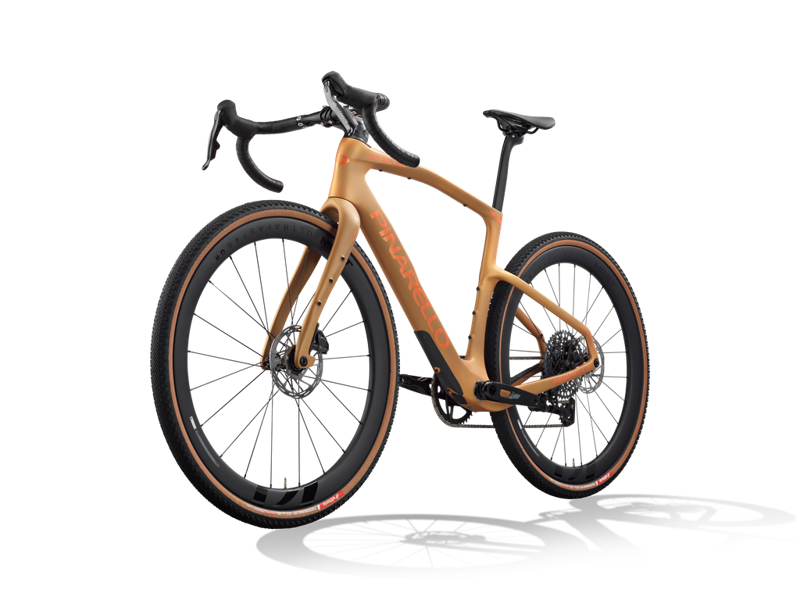

Pinarello Grevil F5 SRAM RivAXS2xDBXP Bicycle Namib Brown Matt

Brand:Pinarello

Code:C2161253223-3383

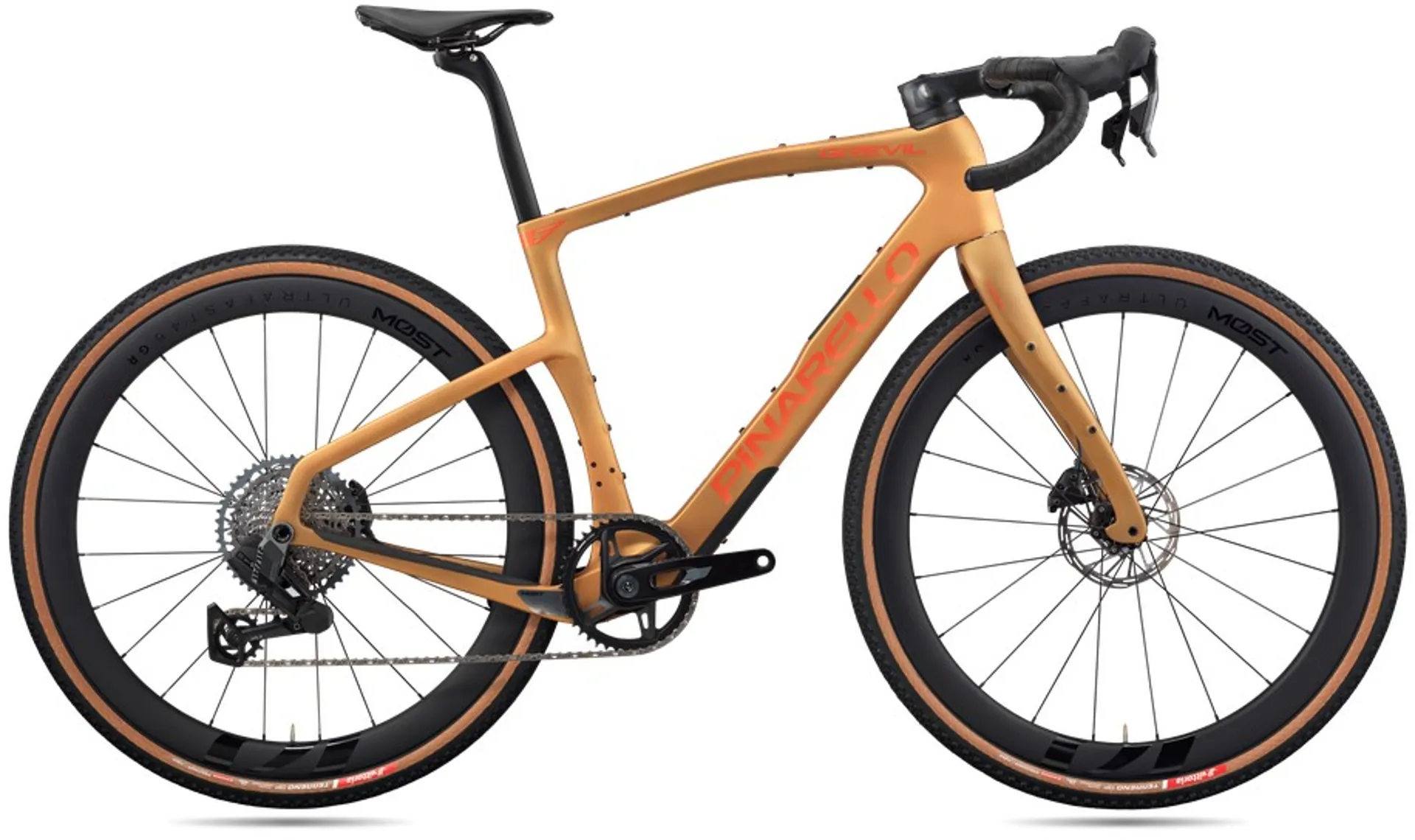

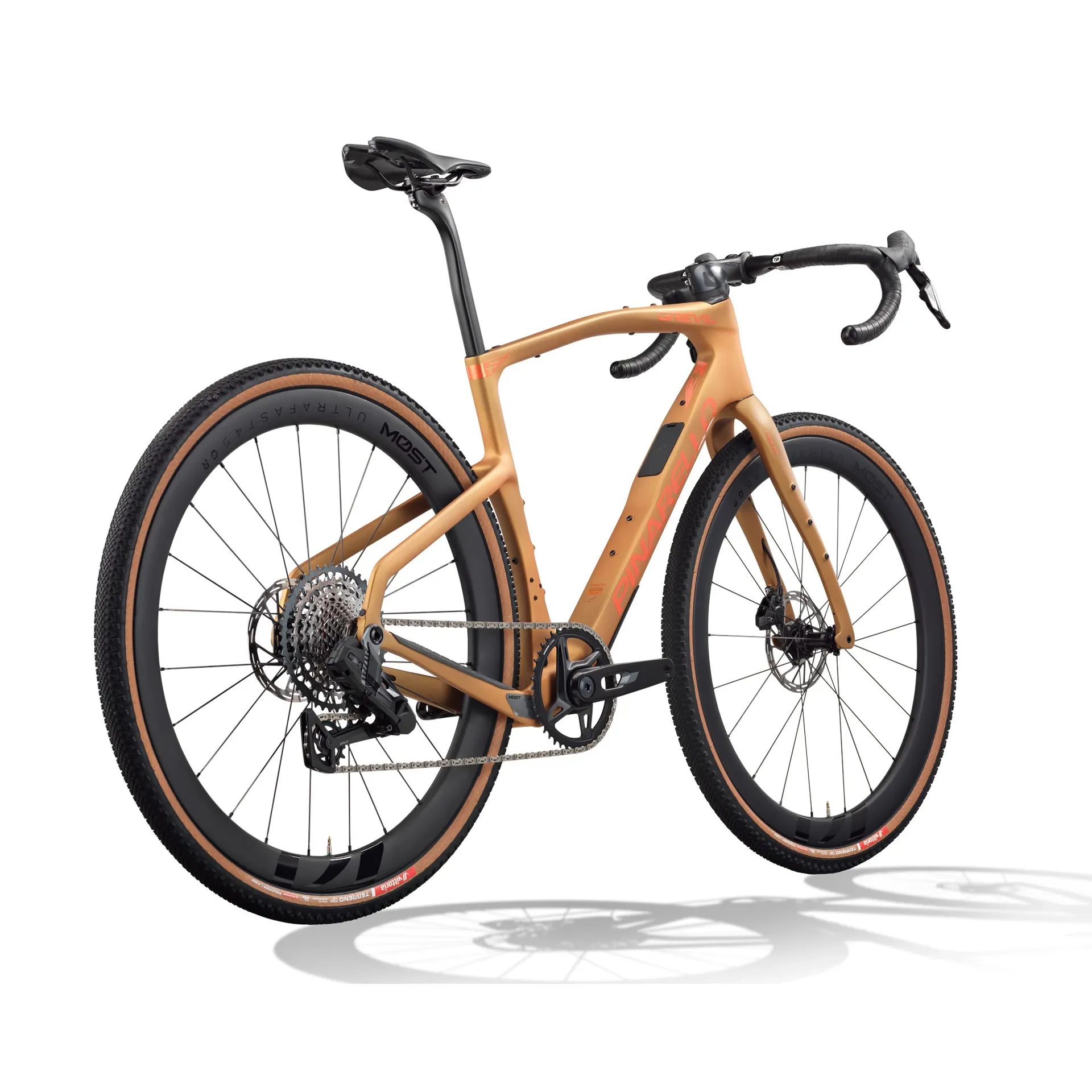

PinarelloGrevil F5 Rival AXS Gravel Bike

If you're a gravel cyclist seeking the ultimate combination of performance geometry and long-distance comfort, the Pinarello Grevil F5Gravel Bikeis built for you. Designed specifically for ultra-distance solo events, single- or multi-day adventures, and fast-paced off-road racing, the T700 UD carbon fibre frame delivers a harmonious balance of snappy responsiveness with excellent small-bump absorption. The SRAM Rival AXS XPLR 1 x 13 electronic groupset offers a brilliantly adaptable range of gears and fuss-free wireless shifts, keeping you pedalling smoothly over ever-changing terrain and contours.

Every Grevil F bike is equipped with Pinarello’s signature Flatback downtube for enhanced stiffness and integration, allowing easy access to larger bidons (up to 750ml) and compatibility with frame bags, perfect for long-haul riding. Features like the downtube tool port, TiCR internal cable routing, and Race Geometry+ ensure a clean, aerodynamic setup without sacrificing control. The adaptive seatpost and twin-armed seatstays absorb vibrations, while the ONDA fork and enhanced bottom bracket area provide exceptional handling and power transfer. With tyre clearance up to 50mm on 700c wheels, the Grevil F is ready for anything. From smooth tarmac to rugged trails, it makes the ideal gravel bike for serious cyclists seeking versatility, comfort, and podium-level performance.

Highlights

  • Flatback Downtube: Redesigned for improved stiffness and better integration with larger bidons (up to 750ml) and frame bags.
  • Downtube Port: Allows a toolbag to be seamlessly stored inside the frame.
  • TiCR Integrated Cable Routing: Cleaner look and improved aerodynamics without limiting bar and stem options.
  • Race Geometry+:Tuned for endurance rides (5+ hours) with a longer toptube and shorter stem for better off-road handling.
  • Enhanced Bottom Bracket Area: Opened-up front triangle increases power transfer and pedalling stiffness.
  • Versatile Tire Clearance: Fits a wide range of 700c tires—from 25mm road to 50mm off-road—for maximum adaptability.
  • Adaptive Seatpost: Provides 10mm of flex to absorb vibrations while keeping weight low and efficiency high.
  • ONDA Fork: Lighter, with improved damping and size-specific rake (50mm or 55mm) for optimal traction on rough terrain.
  • Twin-Armed Seatstays: Works with the seatpost to enhance comfort and traction by absorbing vibrations.

Technical Specification

FramePinarello Grevil F, TiCR cable routing, thru-axle
T700 UD Carbon fibre - offering excellent responsiveness and performance, but with a greater capacity to dampen and absorb vibrations
ForkF Onda Fork with ForkFlap™, Tapered head tube
Bottom BracketSRAM BB DUB ITALIAN 70mm ROAD WIDE
StemTiger Aluminium Aero TiCR
HandlebarJaguar XA GR TiCR
Front BrakeSRAM Rival 2 pistons, 160mm rotor
Rear BrakeSRAM Rival 2 pistons, 160mm rotor
Rear DerailleurRival AXS XPLR wireless
Brake/Shift LeversRival AXS XPLR wireless
CassetteRival XPLR AXS 13-speed - 10-46 tooth
CranksetRival XPLR 1 x - 40 tooth
WheelsetMost Gravel Carbon 45 DB XDR
Front TyreVittoria Terreno Gravel Endurance 700x45c
Rear TyreVittoria Terreno Gravel Endurance 700x45c
SaddleMost Lynx My26
SeatpostD-SHAPE seatpost
